Palletizing Robots for Bags
Place Bags Precisely on the Pallet
Palletizing Robots with High Packing Performance

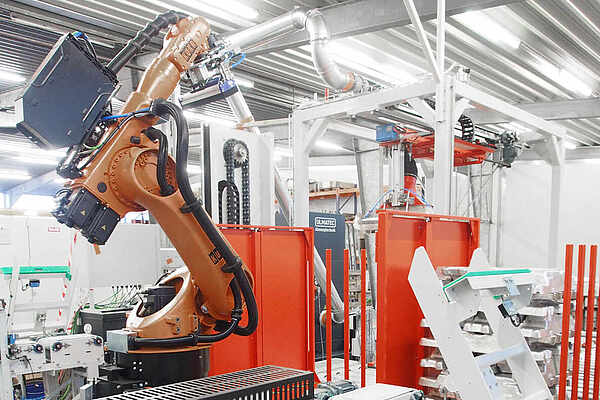

The SMB articulated arm robot from KUKA is the optimal solution for palletizing bags in combination with an SMB combination gripper. The bag palletizer meets the ever-increasing demands for flexibility, optimal space utilization and safety. It can be used for different load carriers such as Euro pallets, half pallets and industrial pallets. Independently editable or programmable layer and pallet patterns offer additional advantages and improve safety.
Find out more about our Palletizing Robot for Bags and other palletizing systems. All the information is available in compact form in our product sheet.
Palletizer Product SheetProduct Information
- Fully automatic bag palletizer with combi gripper
- Independently editable or programmable layer and pallet patterns
- For pallet formats of up to 1,250 x 1,050 mm
- Placement of up to 600 bags per hour
- Up to four palletizing positions possible
- Can be combined, for example, with conveyor technology on a big bag filling system
Functioning

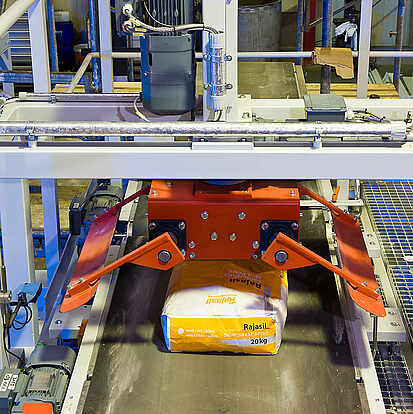

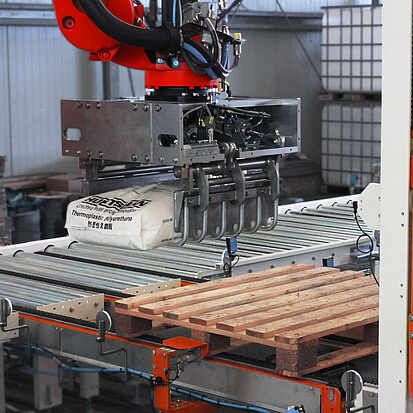

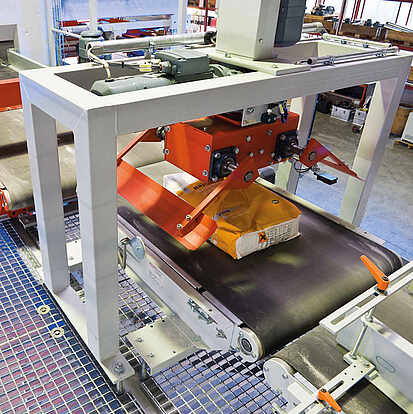

A pallet comes out of the pallet magazine and waits in the intermediate storage area. There, the robot arm, which can place not only bags but also sheets of cardboard due to its combi-gripper, places a protective cardboard sheet on the pallet. The pallet then moves to the palletizing area and is aligned there. During this time, the robot removes the first bag and positions it floating above the Once the pallet is completely filled, it is transported to the wrapper.
