Key Components in Intralogistics
Pallet changers automatically move goods from one pallet to another. The machines are used to switch between pallet types. This is necessary, for example, when strict hygiene regulations apply, e.g. in the pharmaceutical industry. Often, deliveries come on traditional wooden Euro pallets, but plastic or metal pallets are used internally. Pallet changers automate this task, increasing speed and efficiency. They're adaptable, too, fitting into the inbound and outbound stages of a warehouse to exchange pallets or to adjust and stabilize the load.
Choosing the Right Pallet Changer
Swapping pallets with a pallet changer can be done using various mechanical methods. When choosing a pallet changer, consider the size and type of your items and their containers, as well as the operational flow. Key questions include:
- What types of items need to be transferred?
- Are there special conditions, like cleanroom standards, to consider?
- How will the pallet changer integrate into your existing intralogistics processes?

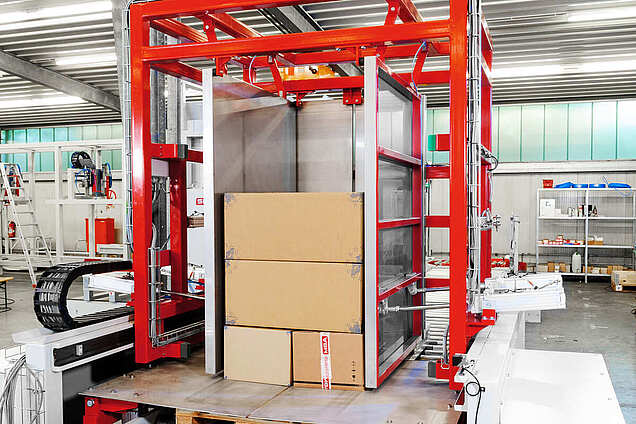

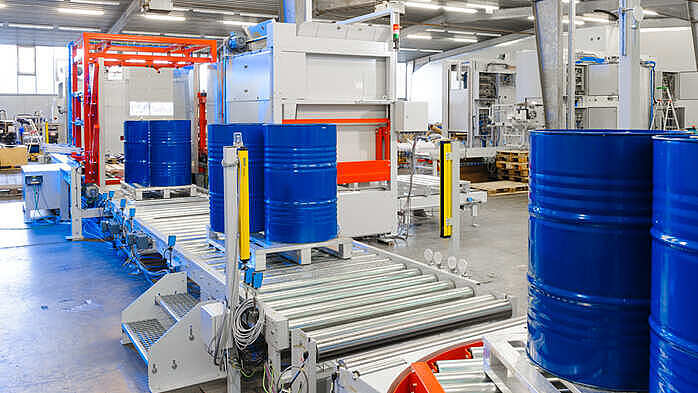

In the slide-over method (sometimes referred to as a horizontal pallet changer), the machine can manage various types of loads, from cartons and trays to larger items like barrels and canisters. How does this method work? Initially, the pallet is fed to the pallet changer using a conveyor system. Then, the load is stabilized by side support walls. Next, a sliding wall (or push plate) moves the items from the original pallet onto the target pallet. Empty pallet slots located before and after the pallet changer ensure the supply and collection of empty pallets. For instance, the SMB Sliding Pallet Changer is capable of performing up to 80 pallet exchanges per hour.

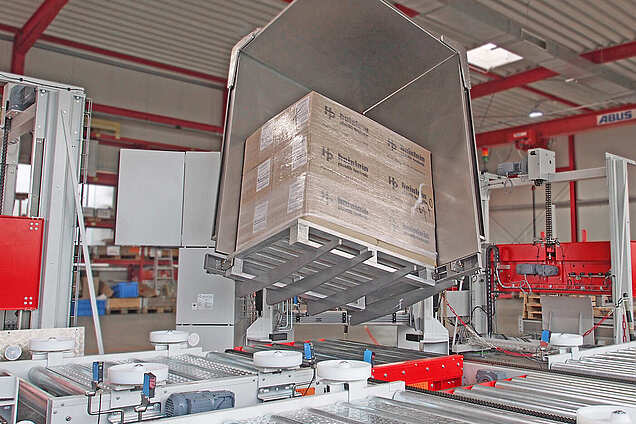

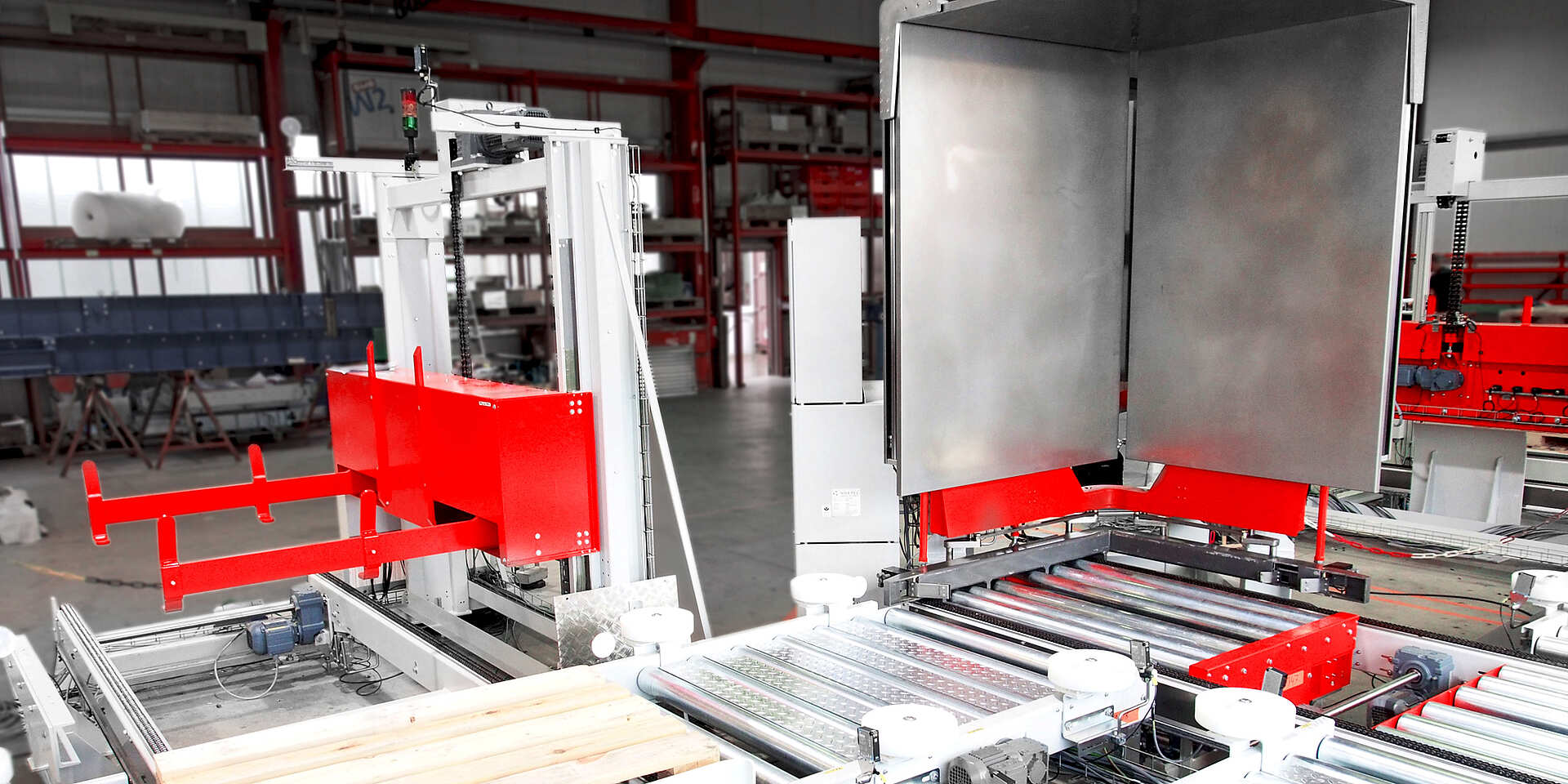

his method is suitable for a variety of container types, including cartons, trays, or barrels. How does a tilting pallet changer function? The loaded pallet is introduced to the machine, which then automatically swaps it out using a rotating and tilting action. A significant advantage of this method is that the cargo is neither compressed nor slid, making it ideal for delicate or unstable goods. The SMB Tilting Pallet Changer, specifically, can handle heavy loads, supporting pallets loaded with up to 1,500 kilograms.
Our Tilting Pallet Changer is also equipped to reposition stacks of goods on the pallet, to ensure proper alignment and centering.
