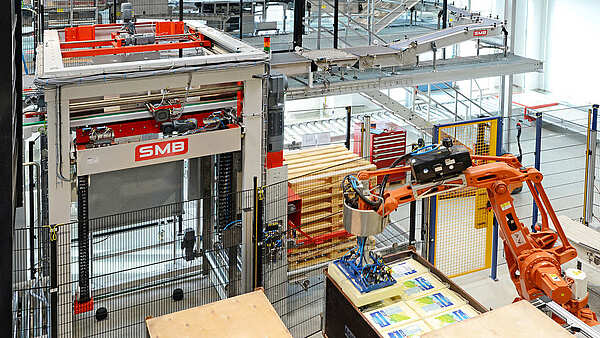

Shark Layer Palletizer
Loads every pallet in a space-saving, product-friendly and dimensionally stable manner
Innovative Layer Palletizer

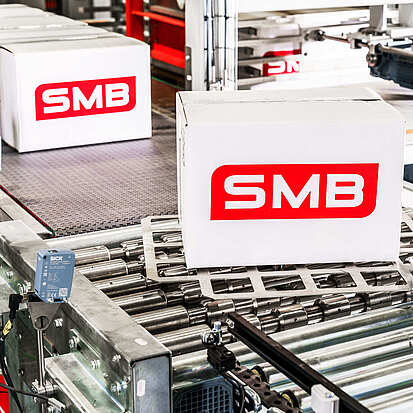

Whether it's a turning station, a conveyor, turning and sliding unit, turnstile, turning clamp or turning pin: with the help of a wide range of techniques, the Shark can palletize all types of cartons, trays and shrink-wrapped bundles. The focus is always on loading the pallets gently. Together with the new setting pattern generator, the palletizer and turning system ensure optimally aligned, space-saving and dimensionally stable loading. The layer palletizer can be optionally expanded and can be optimally connected to other devices, thus offering a wide range of possible applications.
In Action

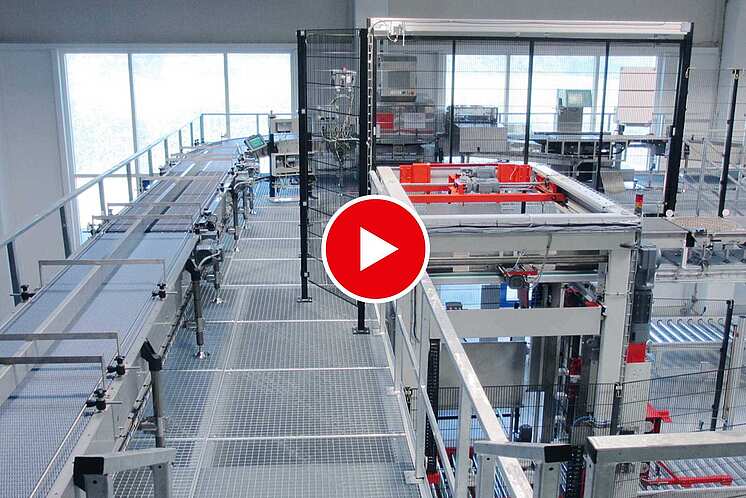

The video gives you an impression of how the Shark Layer Palletizer works.
Find out more about the Shark layer palletizer and our other palletizing systems. All the information can be found in our product sheet.
Palletizer Product SheetProduct Information
- Possible pallet formats (LxWxH): 800 - 1,550 x 600 - 1,250 x 1,600 - 2,400 mm, can be customized in size and performance as needed
- Pallet transport: single or double-deck conveyor technology (FH 500/750 mm)
- Up to 35 containers per minute

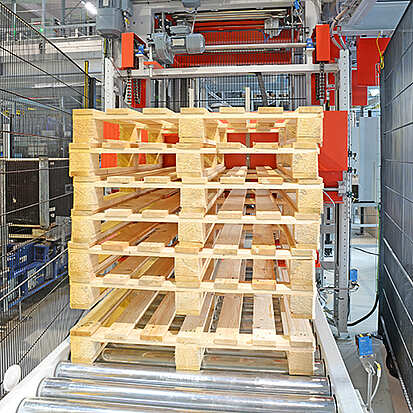

- Attached empty pallet gripper magazine (mounted directly on the base machine)
- Interleaf sheet applicator operating from the pallet or from the movable cardboard magazine
- Energy-saving potential due to lower moving mass ratios of the individual components (approx. 1.7 to 2.2 kW/h)
Shark Performance Range
- 20-35 cycles or containers/min.
- Sheet applicator working from the rigid magazine; movable 2 and 3 cardboard magazine
- turning station; turnstile; rotating clamp (sack palletizer); FDV (conveyor turning and sliding unit), rotating pin
- Remote maintenance via VPN; mobile card and optionally via EWON router (mechanical release
