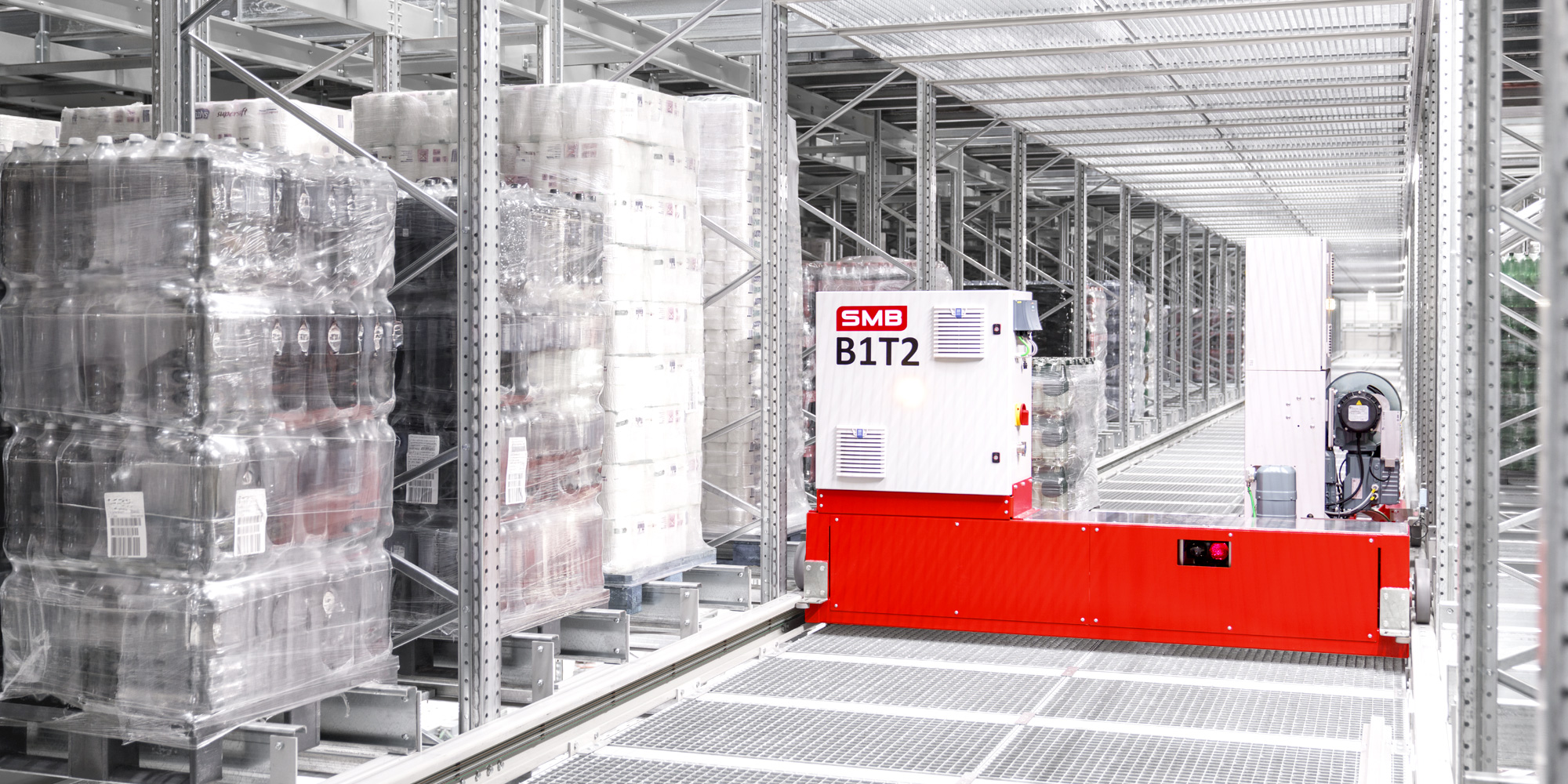

Truck Shuttle Half Pallet
Storage system for Euro and half pallets
Handling of Euro and half pallets with one system
The truck shuttle handles both Euro pallets and half pallets as Euro pallet equivalents
Turntable on truck
Half pallets are brought together in pairs by the integrated turntable on the control unit.
Formation of mixed pairs possible
The truck shuttle is suitable for the automatic picking of beverage and display pallets.
Intralogistics without obstacles
The system shows its full potential in central warehouses where different pallet formats are stored.
Optimized Warehouse Efficiency for Retailers and Discounters
The Truck Shuttle Half Pallet combines a a carrier vehicle (truck) with a pallet shuttle for the simultaneous handling of half pallets (800 × 600 mm) and Euro pallets (800 × 1,200 mm) within a warehouse layout.
An integrated turntable takes over the pallets directly at the control unit – quickly and without additional transfer stations. At the same time, the warehouse management system (WMS) automatically recognises the required pallet format and controls each storage and retrieval operation.
Here you can download the product datasheet for the Truck Shuttle Half Pallet
Truck Shuttle Half Pallet Datasheet
Product Information
- Truck with cable-connected pallet shuttle
- For pallet warehouses with 3–20 storage levels
- 24/7 continuous operation
- 98.5% system availability
- With integrated turntable function
- 30–40 individual cycles per hour
- Suitable for Euro and half pallets (up to 1,500 kg payload)
- Throughput: up to 132 EPA per hour (storage and retrieval)
- For building heights up to approx. 40 metres
- Branch-specific pallet dispensing
- Efficient error handling for faulty parts
- Integrated FEFO control
Flexible Pallet Handling Without Base Pallets
With the Truck Shuttle Half Pallet, food retailers benefit from a fully automated and powerful storage solution for Euro and half pallets. Through the consistent application of the FEFO principle (‘First Expired – First Out’) and comprehensive quality assurance measures, the system ensures reliable and order-accurate store delivery at all times.

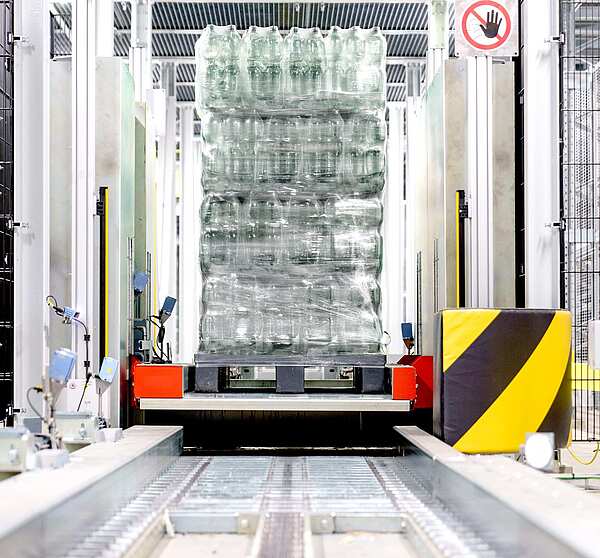

The system processes pallets fully automatically – without changeovers, external pallet stacker or separate storage areas. Precisely programmed acceleration and braking profiles prevent the load from slipping. In the goods issue area, the pallets are ready and sorted by order, enabling store-specific picking of beverage containers, fast-moving items or promotional goods, while at the same time minimising the risk of incorrect deliveries.
