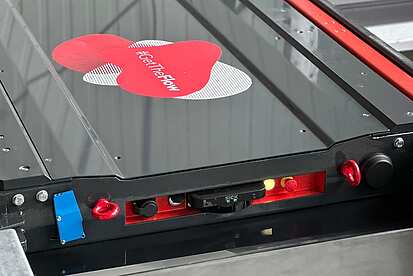

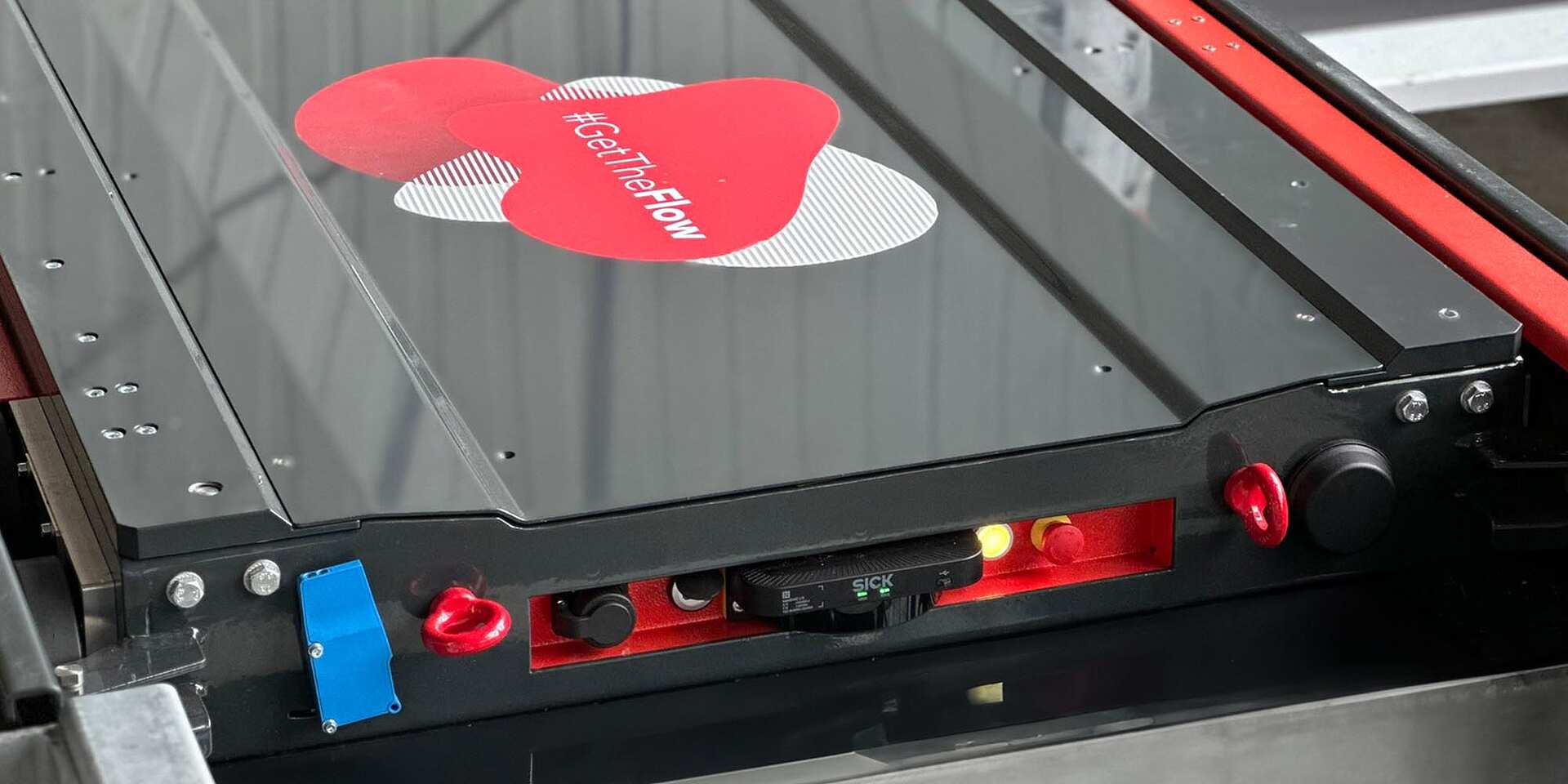

CAPtriever Pallet Shuttle
Wireless, with WLAN and 48V supercapacitors

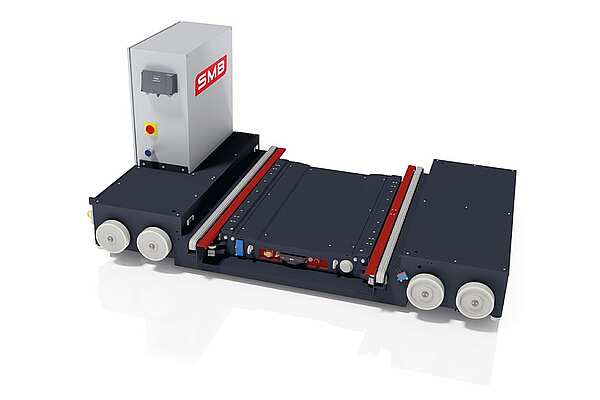

The new generation of our proven truck shuttle technology
The CAPtriever truck accelerates up to 3 meters per second in the main aisle. The latest drive technology from SEW-EURODRIVE and a lower vehicle weight for individual devices ensure high energy efficiency and very low power consumption. The pallets slide into the storage channels at a speed of one meter per second, driven by supercapacitors.

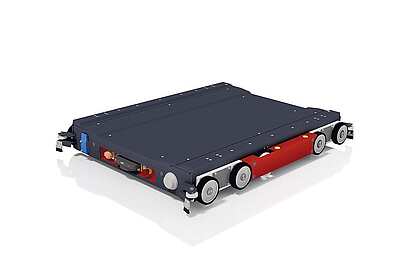

Wireless, with WLAN module, synchronous motor and supercapacitors
Controlled by WLAN, the CAPtriever systems are optimally designed for multi-deep storage in channel storage systems. Euro, industrial and barrel pallets up to 1,500 kg are transported effortlessly.
New freedoms in pallet warehousing
Depending on customer requirements, storage capacities of up to 100,000 pallet spaces are possible. The intrinsically safe shuttle enables channel depths of up to 25 meters. With a few simple modifications, the system can be used in a variety of ways – in an automatic high-bay warehouse in silo design or in a compact warehouse in in-house construction.

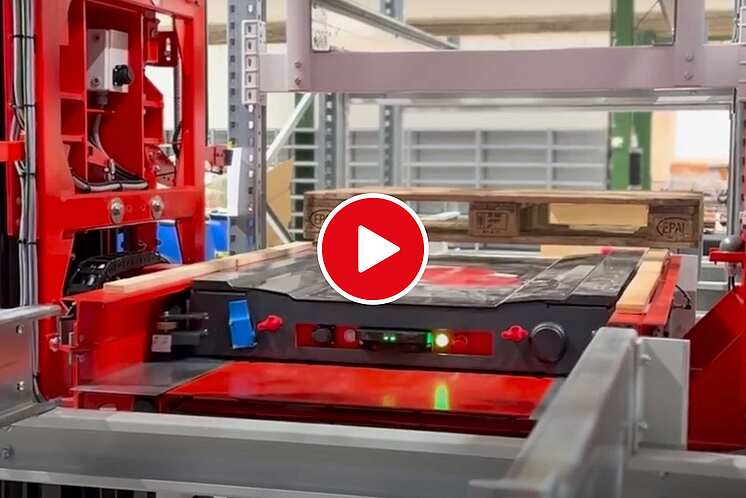

CAPtriever in action
Everything at a glance: you can download the product data sheet for the CAPtriever pallet shuttle system here.
CAPtriever Pallet Shuttle System DatasheetProduct Information
- Truck rail-bound, shuttle wireless
- Energy transmission: charging contacts
- Energy storage: supercapacitor (48 V)
- Data connection WLAN / wireless
- Drive technology: synchronous servo motors
- Number of wheels: 8 (of which 4 are driven)
- Suitable for Euro, drum and industrial pallets (up to 1,500 kg)
- Gearbox with food-grade H1 oil, suitable for freezer conditions
- Intrinsically safe thanks to obstacle detection
- Position detection and pallet recognition
Benefits at a glance
- Supercapacitors: fast charging times, long service life, high power density, recuperation possible
- Ideal for food: low-wear toothed belts, gearbox with H1 oil, easy to clean, for freezing conditions
- Scalability: one truck can serve several shuttles
- Efficiency: low vehicle weight, high payload, WLAN control
- High intrinsic safety: obstacle detection, position detection, pallet detection, safety scanner, light scanner, emergency stop button (on both sides)
